2010-08-20

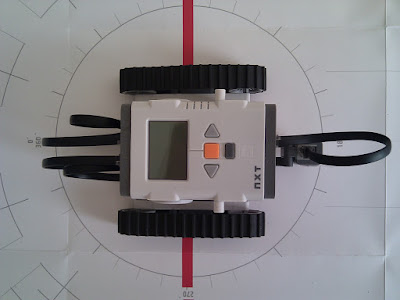

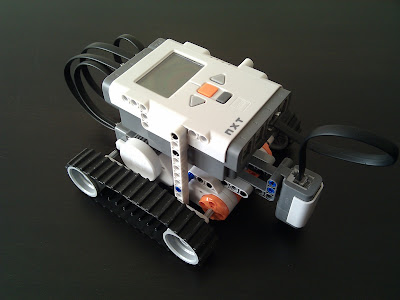

Line Following Robot

Everyone with a Lego Mindstorms set must at some point build a line following robot. Here's mine.



The trick to following a line when all you have is one light sensor is that you don't follow the line, you follow the line's right (or left) edge. You try to stay exactly on the border between the dark area and the light area. The light sensor reports shades of gray when it passes from black to white. You choose a value that you think corresponds to the edge and then when the sensor reports a value brighter than the threshold value, you turn left, and when it reports a value darker than the threshold value, you turn right (assuming you chose to follow the right edge of a black line).



For smooth movement we don't just turn left when the value from the sensor is greater than the chosen threshold. Since the data we get is not binary, we can make the robot turn sharper when we think it's off the line entirely and only adjust its course slightly when we think it has left the edge of the line, but by just a little.



Here's the NXC program that the robot is running. It's heavily inspired by the NXT-G program of this robot. I initially used OnFwdSync(OUT_BC, ...) to turn the robot, but it sometimes resulted in very jerky movement. When trying to figure out whether it's a problem with my hardware or software I looked at that robot's program and saw that they control each motor independently. When I replaced calls to OnFwdSync(OUT_BC, ...) with OutFwd(OUT_B, ...) and OutFwd(OUT_C, ...) (with power values based on whether we think we should be turning right or left), the jerkiness problem was solved.

I also used their idea of calibrating the sensor at the beginning (the robot rotates a bit to the left and then to the right, noting the maximum and minimum light levels and chooses the threshold value as the average of the two).



You will note that I used a faster version of the program for the NXT Test Pad and a slower version for following the line that I made on the floor with electrical tape. I had to do this because the robot kept losing the line (probably because the tape was too narrow, it was also blue, not black, and some of the turns I made may have been too sharp).

2010-08-17

Music Tape Player

My second NXT creation is a music player that uses the color sensor to read notes from tape.



The notes are encoded using colors. I considered using shades of gray and then using the color sensor in light level mode to read them, but that would require calibration (as the readouts would be dependent on current light conditions in the room) and possibly wouldn't allow for more than 5 or 6 well-distinguishable levels anyway.



Here's the NXC program that the device is running. As you can see it constantly reads the color sensor and adjusts the sound accordingly. Another way of doing this would be to only read the color at certain intervals, which would eliminate the problem that sometimes occurs when the color sensor gets confused during the transition between one color and another. But the current approach has the nice feature that we can have notes of arbitrary lengths (by simply putting a wider or less wide stripe of color on the tape). It also doesn't require any synchronization.



Possible improvements might include:

  • an encoding scheme that would allow for more than five notes
  • a mechanism for stopping the tape at the end
  • a rewinding mechanism
  • a better tune for demonstration

2010-08-12

Sonar

This is my first Mindstorms robot. It rotates around the vertical axis while gathering data from the ultrasonic sensor. Every time it makes a full circle it plots the gathered data on the display. The results are mixed.



Can you guess what the red ball is for?





OK, so the red ball is there so that the robot knows it made a full circle. You can see that the color sensor rotates with the rest of the robot while the ball remains still.



Here's the source code for the program that the robot is running.
